Features
standard system - for typical passenger cars suitable to the 13-pin plug of the trailer trailer reverse lights control trailer LED/bulb lamps support using of factory connector in car supply voltage (+12V) is permanently brought out in the socket contains separately circuit for trailer battery charging displaying malfunction of trailers turn lights on car dashboard display panel (for selected cars) disconnection of FOG lamp in car after detection the trailer output for enabling of switching off PDC signalization in car
Find distributor Add to compare list Add to selected
G13-OUT-100-BYD-SEAL
Index: Q3002-0403

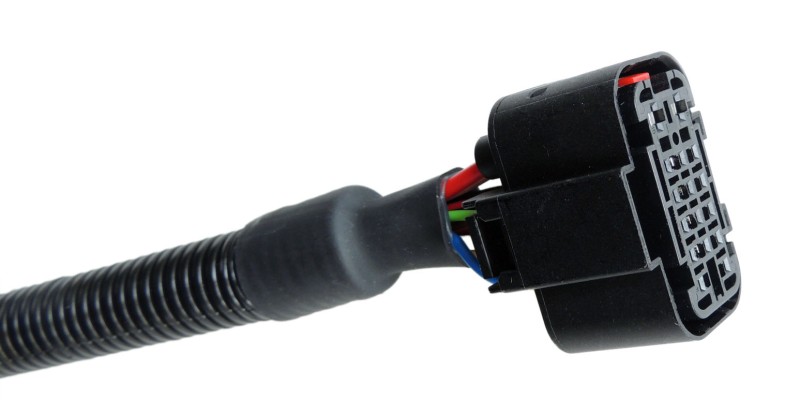

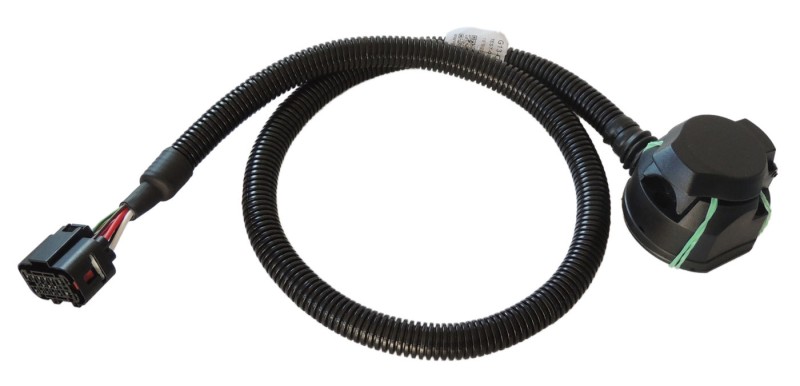

Dedicated harness with 13-pin trailer hitch socket for a BYD (Seal U, Sealion 7) cars which have a factory connector (so-called ‘preparation’). The kit includes the accessories needed for installation. The kit does not require a separate module.

Some "additional" functions (i.e. other than lighting of trailer/bike rack) require vehicle settings/configuration.



Product is dedicated for cars:

    • BYD SEAL U SUV (2024/II...)
    • BYD SEAL U DM-i SUV (2024/VI...)
    • BYD SEALION 7 SUV (2024/XII...)
    • BYD SEAL 6DM-i (2024/IV...)



NOTE: The latest model years (from 2026 - including after-facelift versions), the manufacturer has restricted the electronic equipment, including the support of signals in this factory-fitted connector. Although the cars are fitted with this connector, it is ‘empty’ (without signals) – with no option for ‘activation’. In this situation, Quasar Electronics isn't responsible for don't operation of this harness.

Possible solution is to use a dedicated MP2S-CAN harness – see the catalogue.

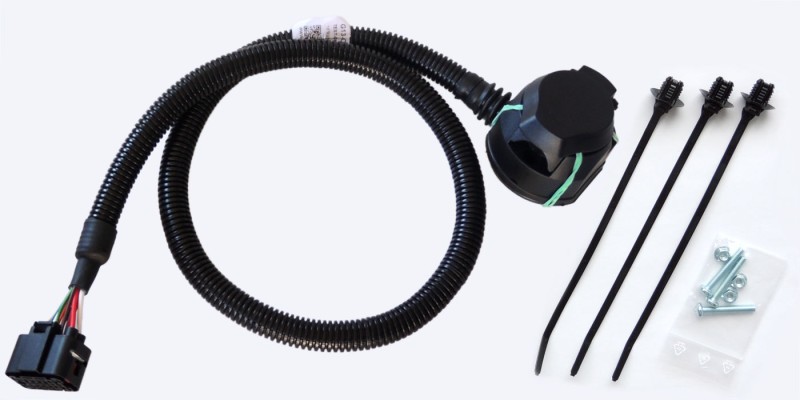

Kit contents
  • Main cable harness with 13-pin socket 1 pc
  • Set of quick-connectors 1 set
  • Screw set 1 set
Module main features
LED lights and filament bulbs support(trailer)
Ability to control of park sensors module in car
(settings required)
Trailer turn signal lamps failure detection
(settings required)
Trailer reverse light control
Permanent power supply to trailer socket
Trailer battery charging circuit
Car rear fog-lights control modes
Car rear fog lights cut-off
(settings required)
Features of electric cable harness
Type of cable harness: P2P ("pin-to-pin")
Mounted socket on the cable harness
Length of cable harness to the socket
1 m
Technical data
Power supply voltage
12 V
Kit equipment
Complete bundle of towbar with installation accessories
Installation manual
