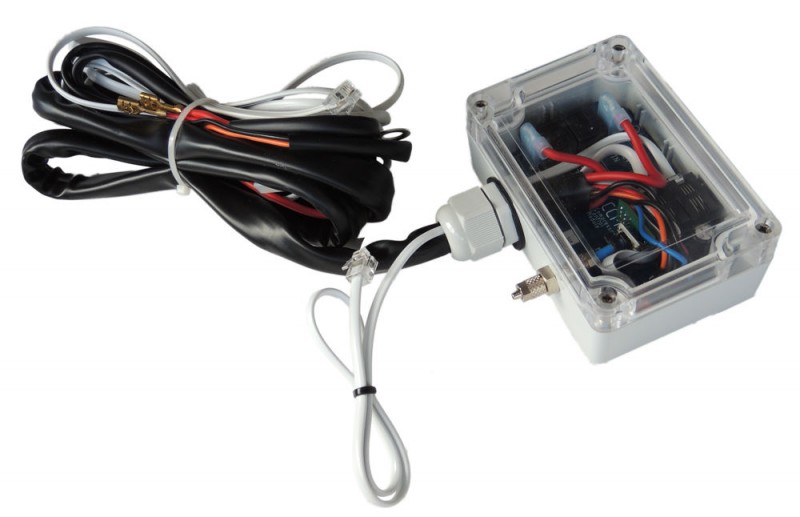

CCM-02 Compressor Control Module

Module CCM-02 (Compressor Control Module) is used for steering of additionally equipment tow truck like air suspension compressor control via CCC-01 (Compressor Control Console) or MCC-01 (Multifunctional Control Console).



Module CCM-02 module is  designed to installation and operation outside the vehicle. Additionally kit contains (as option) electrovalve being the executive element.



Module controls a compressor pressure (continuously or according to programmed settings) by control console. Module requires connection of power and connection to managed elements. Moreover module has separatelly connector for pressure measuring in pneuamatic system. For operation is requred control console and can be use dedicated console CCC-01 or multifunction console MCC-01.




PACKAGE OPTIONS:

    1. Tow truck air suspension compressor:
      • CCM-02 (solenoid valve - option);
      • CCC-01 console.

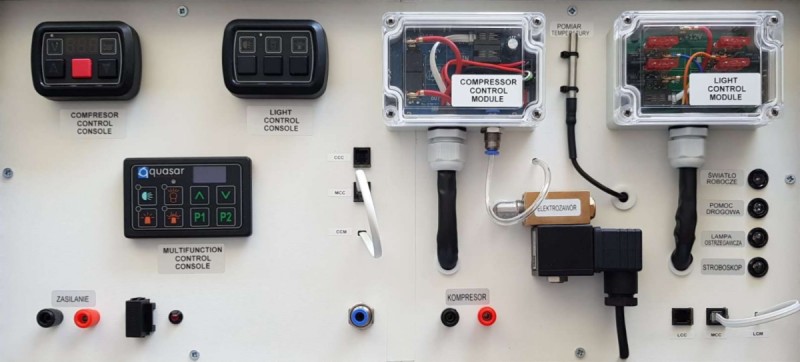

    2. Tow truck air suspension compressor and auxiliary lights control:
      • CCM-02 (solenoid valve - option);
      • LCM-02 module;
      • MCC-01 console.



Technical data and features
Rated supply voltage
12 V
Resting power consumption
<5 mA
Continuously pressure regulation
Transfer rate of data bus
19200 bps
Operating temperature
-40..+70 °C
