The standard functionality module (WH3Q-S) with 13-pin socket and 8 usable wires (G8). The package is specially designed for IVECO DAILY LCV (Light Commercial Vehicle) manufactured until June 2021. Later manufactured vevicles use standard connections and in this case suitable kit is WH3Q-S-G8-D5-P2P-STD.

The kit includes wire harness of exact length(precisely for this car's model). Special advantage of this kit is a possibility of connection to the existed plugs and sockets of car's electrical system without cutting. Installation location of central unit is cabin interior on the left hand side of a car.

Module has all standard functions, that on top of all these basic functions it make possible eg.:

• independent rear fog lights control the fog light (54G) on a car can be switched-off when it (54G) is still switching-on on a trailer;
• damaged rear turn signal lights activate audio alarm(buzzer)

To the module can be connected (optionally) LED-RGY-300 - tri-colour LED indicator that inform driver about:

• trailer auto-detection;
• trailer's turn signal lights damage;
• fog lights turning-on.

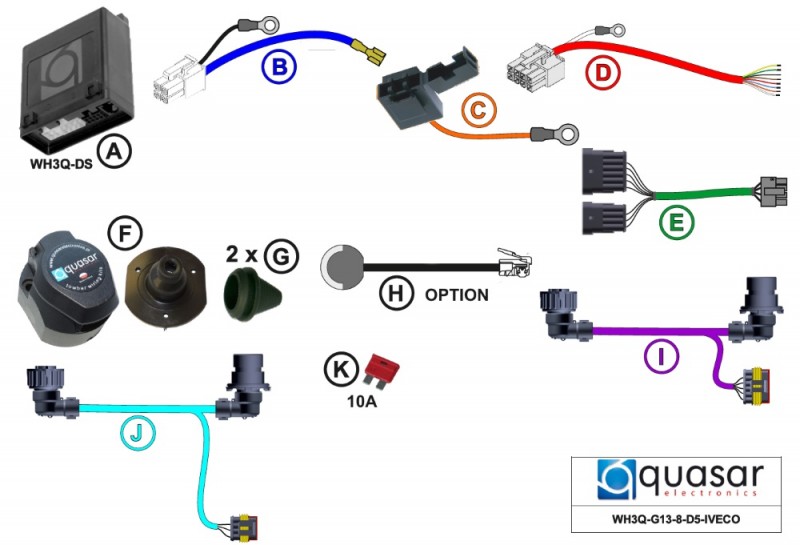

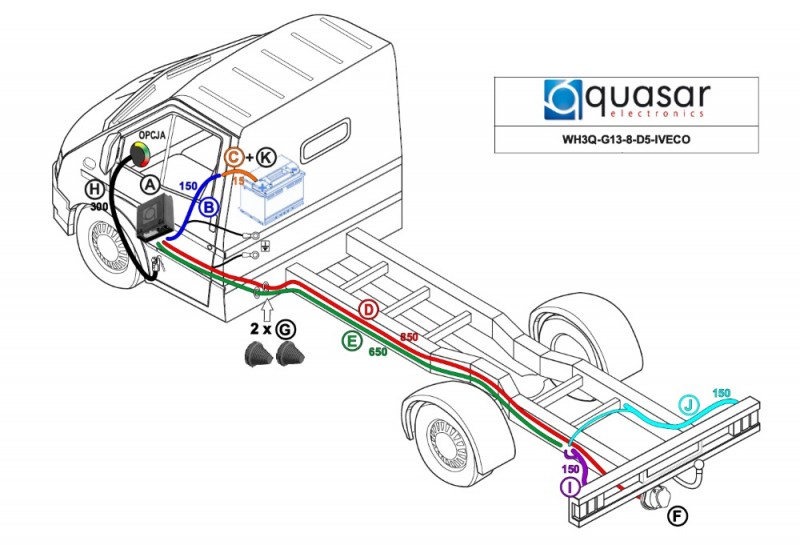

Details of the set and mounting locations are shown in photo gallery and in catalogue card.
