Digital module MP6-DS is most expanded controller of trailers light which was designed particularly for caravans (also with "own" battery) equiped with standard and LED lamps. Main feature od this module is hermetics case with adequate socket for all wires. Module provide:

• steering of FOG light by sequential method (is possible to switch off FOG light on car leaving lighting on trailer);
• has an output for deactivate signalling of rear parking sensors when trailer is connected (can be required to use PDC... modules);
• properly working with PWM steering of lamps in car (when by one wire are controlled two lights - eg. "STOP light" and "tail light");
• has function an intelligent charging of caravans battery.

When module MP6-DS is connected properly (according to installation diagram - on inputs side) then malfunction of directions lights of trailer will be signalled by faster blinking of directions lights of car.

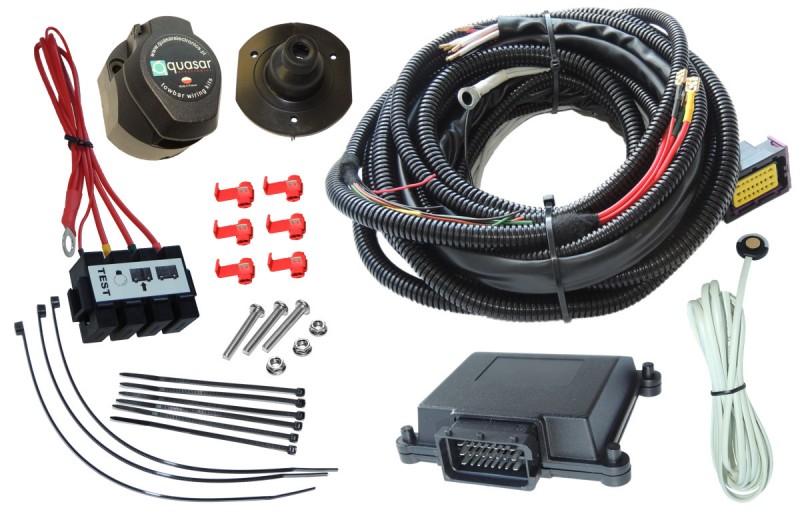

The cabling of kit has separate fuses for folowing circuits:

• 10A - trailer lighting,
• 10A - fixed power supply of trailer,
• 10A - charging trailer's battery,
• 1A - voltage control of car installation.

Module MP6-DSe have an information functions (using separate tri-colour LED) for signalling:

• connection of the trailer;
• damaging the directions lights on the trailer;
• switching-on fog light on the trailer;
• loading of trailer battery.

Product requires to be installed by specialized workshop - read here.

• Product's EAN code: 5907662621985
