TBM-DB-G8-24/12V
Module with basic functionality (TDM-DB) provide "copy" signals of lights from rear of the car to socket of the trailer. Module properly working with PWM steering of lamps in car (when by one wire are controlled two lights - eg. "STOP light" and "tail light"). Module dedicated for cars wint 24V installation and for connection trailer with 12V installation.
Highlights of this module and kit:
operations exclusively with car installation of 24V with possibility of the connection the "typical" trailer 12V;
- hermetic enclosure which makes possible "external" mounting of module; this can be an important when is mounted to the frame of car - like for trucks, buses etc.;
- properly working with lamps based on filament bulb or on LED (in car and/or on trailer);

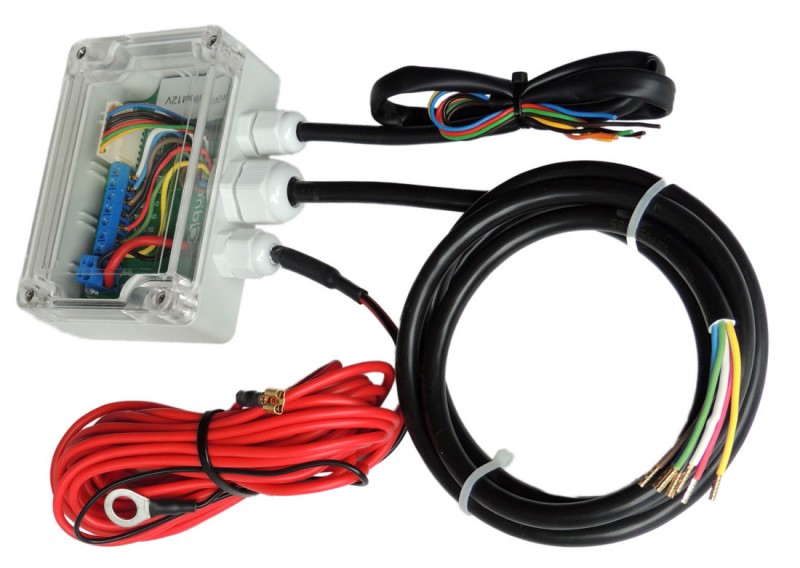

Kit is delivered with connected inside the module (as is visible on picture) cable harness: power, inputs and outputs.
Product requires to be installed by specialized workshop - read here.
- Product's EAN code: 5907662621534
Kit contents
- Control module with wire harness connected 1 set
- Wire for connection socket to the ground 1 pc
- Socket G13 1 pc
- Mounting set 1 set
- Screw set 1 set
- Installation manual 1 pc
Module main features
Current load inputs
≤2 mA
LED lights and single filament bulbs support (car)
Working with cars which use pulse width modulation (PWM) for powering lamps
LED lights and filament bulbs support(trailer)
Ability to control of park sensors module in car
Trailer reverse light control
Permanent power supply to trailer socket
Trailer battery charging circuit
Car rear fog-lights control modes
Trailer fog lights control modes
Direct
Trailer fog light sequential(independent) control
Features of electric cable harness
Mounted socket on the cable harness
Length of power harness
6,5 m
Length of cable harness to the socket
1,5 m
Length of input signals cable harness
0,6 m
Kit equipment
Complete bundle of towbar with installation accessories
Technical data
Power supply voltage
24 V
Position lights output power, max
(each of side) 3 x 5 W for 12 V
Stop lights output power, max
3 x 21 W for 12 V
Turn signal output power, max
(each od side) 21+10 W for 12 V
Fog-light output power, max
21 W for 12 V
Reverse lights output power, max
21 W for 12 V
Data sheet
Wiring diagram (general)
