Features
system designed for TOW trucks suitable to the 13-pin plug of the trailer (used 8-pins) trailer reverse lights control LED/bulb lamps support, PWM control trailer LED/bulb lamps support recognition of PWM steering of car lamps (digital method) independent rear fog lights control trailer rear fog lights turning-on audio information acoustic information about trailer connecion and disconnection trailer's turn signal lights damage datection and audio notification socket for tri-colour LED indicator output for enabling of switching off PDC signalization in car OPTION: additionally variants of stitching off PDC signalling using separatelly PDC-OFF modules
Add to compare list Add to selected
WH3Q-S-G8G8-L1-UNI-DUCATO

Kit with WH3Q-S module was CANCELED. Now available is kit ("pin-topin" version): WH3D-G8G8-L5-P2P-X250



Module with standard features (WH3Q-S) includes 13-pin sockets and 8 usable wires for each of them (2 x G8). The package is specially designed for FIAT DUCATO tow-truck and compatible with tow-trucks CITROEN JUMPER and PEUGEOT BOXER.

The kit includes wire harness of exact length(precisely for this car's model) and all accesoires for connection to the truck electrical system.



Module has all standard functions, that on top of all these basic functions it make possible eg.:

  • independent rear fog lights control the fog light (54G) on a car can be switched-off when it (54G) is still switching-on on a trailer;
  • damaged rear turn signal lights activate audio alarm(buzzer)



To the module can be connected (optionally) LED-RGY-300 - tri-colour LED indicator that inform driver about:

  • trailer auto-detection;
  • trailer's turn signal lights damage;
  • fog lights turning-on.

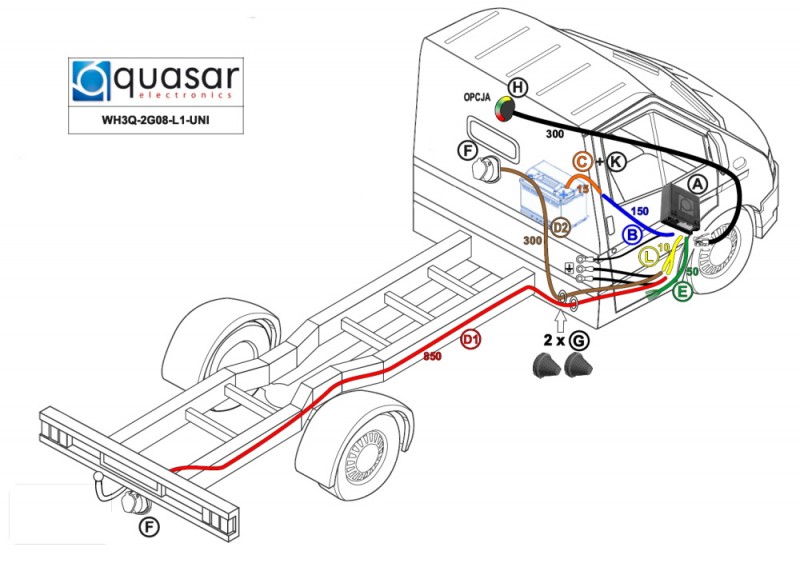

Details of set and regions of installation them are shown in photo gallery.

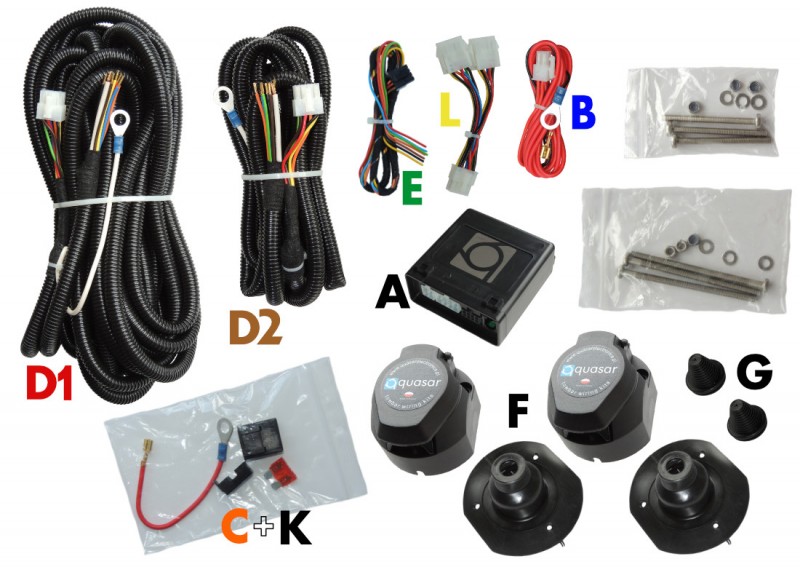

Kit contents
  • Main control unit 1 pc
  • Signal cables harness (7 inputs) 1 pc
  • Power cable harness 1 pc
  • Cable harness to sockets (divider) 1 pc
  • Main cable harness (to the socket) 2 pcs
  • Socket G13 2 pcs
  • Dławnica schodkowa 2 pcs
  • Mounting set 1 set
  • Screw set 2 sets
  • Connections diagram 1 pc
Module main features
Current load inputs
≤2 mA
LED lights and single filament bulbs support (car)
Working with cars which use pulse width modulation (PWM) for powering lamps
(digitally)
LED lights and filament bulbs support(trailer)
Trailer/camper connection detection (bulb lamps)
Trailer/camper connection detection (LED lamps)
Trailer turn signal lamps failure detection
Trailer reverse light control
Alerts & Notifications
Trailer connection notification
sound signal; LED-RGY-300 (option)
Trailer turn signal failure
sound signal; LED-RGY-300 (option)
Trailer/caravan fog lights switching on/off notification
sound signal; LED-RGY-300 (option)
Car rear fog-lights control modes
Trailer fog light sequential(independent) control
Car rear fog lights cut-off
Features of electric cable harness
Length of power harness
1,5 m
Length of cable harness to the socket
8,5+3,0 m
Technical data
Power supply voltage
10-18 V
Position lights output power, max
(each of side) 3 x 5 W
Stop lights output power, max
3 x 21 W
Turn signal output power, max
(each of side) 21+10 W
Fog-light output power, max
21 W
Reverse lights output power, max
21 W
Kit equipment
Complete bundle of towbar with installation accessories
