WH3L-G7
IMPORTANT: Product is unavailable and was replaced by successor (with higher functionalities): WH3Q-S-G7.
Module with basic functionality (WH3L) with 7-pin's socket (G7). Kit contains all accessories for connection of module to the car's electric system - and socket G13-8 already is connected with main harness whitch makes an installation shorter.
Module "copy" signals of lights from car to socket of the trailer.
NOTE: Please remember, that G7 not include circuit for REV light. For example in Poland it can be used only with "lightweight trailer" (gross trailer mass up to 750kg).
Product requires to be installed by specialized workshop - read here.
- Product's EAN code: 5907662621213

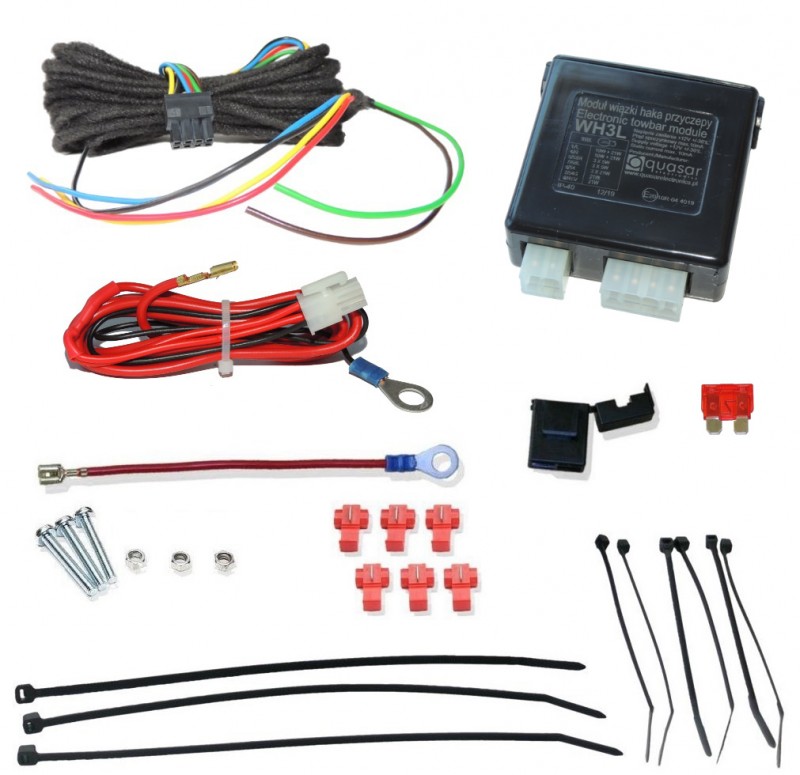

Kit contents
- Main control unit 1 pc
- Main cable harness with 7-pin socket 1 pc
- Signal cables harness (6 inputs) 1 pc
- Power cable harness 1 pc
- Mounting set 1 set
- Screw set 1 set
- Installation manual 1 pc
Module main features
Current load inputs
≤2 mA
LED lights and single filament bulbs support (car)
Working with cars which use pulse width modulation (PWM) for powering lamps
(analogue)
LED lights and filament bulbs support(trailer)
Ability to control of park sensors module in car
Trailer reverse light control
Alerts & Notifications
Trailer connection notification
Car rear fog-lights control modes
Trailer fog lights control modes
Directly
Trailer fog light sequential(independent) control
Features of electric cable harness
Mounted socket on the cable harness
Length of power harness
5,0 m
Length of cable harness to the socket
1,7 m
Length of input signals cable harness
L=1,0 R=3,0 m
Technical data
Power supply voltage
10-18 V
Position lights output power, max
(each of sides) 3 x 5 W
Stop lights output power, max
3 x 21 W
Turn signal output power, max
(each of sides) 21+10 W
Fog-light output power, max
21 W
Kit equipment
Complete bundle of towbar with installation accessories
Data sheet
Wiring diagram (general)
