MP2S-CAN-G8

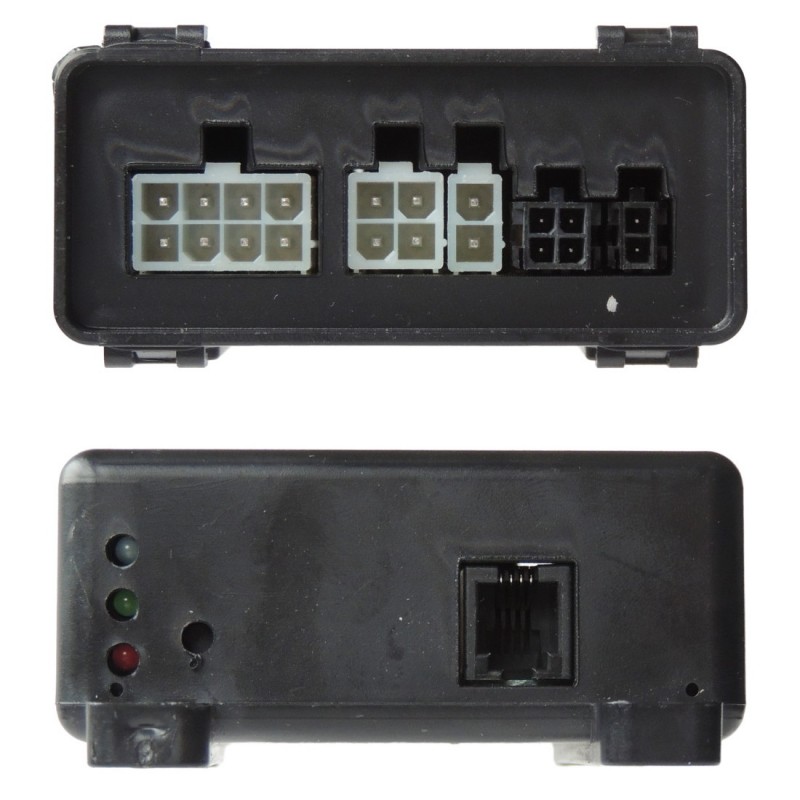

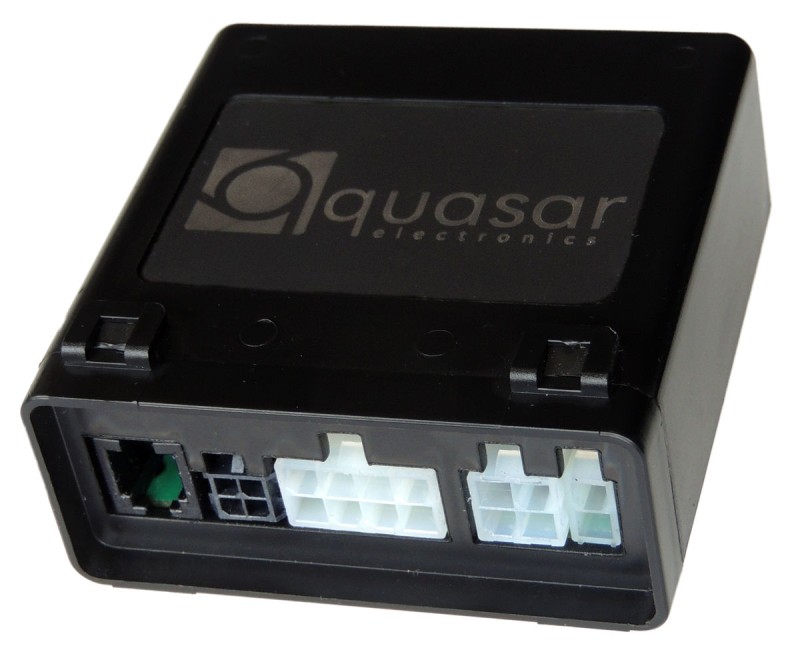

Main module (MP2S-CAN) - in contrast to others - reads inputs data from car CAN-Bus - not from wires to lamps. Thanks to this count of needed connections under installation time is much less than in case of "typical" modules. More over - main cable harness is already connected with socket - this also makes an installation process easier and faster.

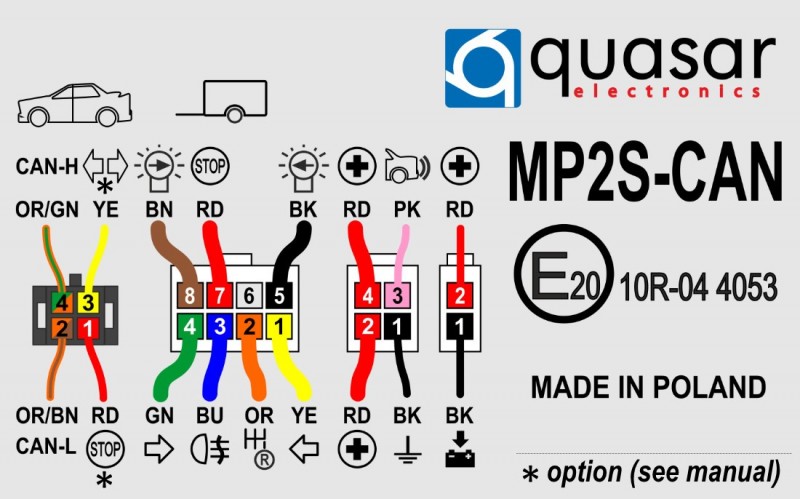

Kit MP2S-CAN-G8 use first 8 pins of socket for steering all lamps (include REV light) on trailer.



MP2S-CAN module supports many of car models present on the European market - but must be configured for concrete type/model of car. Factory is prepared to with particular group of cars. Module is equipped with an output for deactivate of parking sensors module (PDC) in car - but for some cars this can be realised "directly".
Note: continuous product improvement and availability of electronic components leads MP2S-CAN unit  can be oferred in a few versions with small changes. However, all module functions depends on a current firmware generation and still the same for each of them. Firmware update can be made by own using Bootloader with payment free software.



For newest models of KIA Sportage or Sorento and for Hyundai Tucson is offered dedicated kit with cable harness which use available in car the factory connector. Advantages of use it - there are easier and faster installation electrical kit and "cooperation" with car computer (eg. deactivate of rear PDC after detection of trailer).



In special cases (when this is required) is possible to make contact-less data reading from CAN-Bus (without "hard" contact - without "phisically integration" with an installation of car) using optionally module MCB-CLICK-CAN.



Kit can be is equipped with (otional) LED-RGY-500 - tri-colour LED indicator which inform about:

  • connecting of the trailer;
  • damaging the directions lights on the trailer;
  • switching-on fog light on the trailer.



A compatibility list (list of cars and models supported by MP2S-CAN) is available for download below under the FILES tab.


Here are short movies about operate MP2S-CAN.


Product requires to be installed by specialized workshop - read here.


  • Product's EAN code: 5907662621220
Kit contents
  • Main control unit 1 pc
  • Main cable harness with 13-pin socket 1 pc
  • Signal cables harness (to the CAN-Bus) 1 pc
  • Power cable harness 1 pc
  • Mounting set 1 set
  • Screw set 1 set
  • Connections diagram 1 pc
Module main features
CAN-Bus vehicle data readout
LED lights and single filament bulbs support (car)
LED lights and filament bulbs support(trailer)
Trailer/camper connection detection (bulb lamps)
Trailer/camper connection detection (LED lamps)
Ability to control of park sensors module in car
Trailer turn signal lamps failure detection
Trailer reverse light control
Permanent power supply to trailer socket
(possible using PowerKit+RelayKit)
Intelligent charging of trailer battery
(possible using PowerKit+RelayKit)
Alerts & Notifications
Trailer connection notification
Trailer turn signal failure
Trailer/caravan fog lights switching on/off notification
Car rear fog-lights control modes
Trailer fog lights control modes
sequence or direct
Car rear fog lights cut-off
Features of electric cable harness
Mounted socket on the cable harness
Length of power harness
5,0 m
Length of cable harness to the socket
1,7 m
Length of input signals cable harness
(to CAN-Bus) 5,0 m
Technical data
Power supply voltage
10-18 V
Position lights output power, max
(each of sides) 3 x 5 W
Stop lights output power, max
3 x 21 W
Turn signal output power, max
(each of sides) 21+10 W
Fog-light output power, max
21 W
Reverse lights output power, max
21 W
Parking sensors output load capacity, max
0,5 A
Kit equipment
Complete bundle of towbar with installation accessories
Filter by car

Select car type, make and model to find available manuals.

Manuals

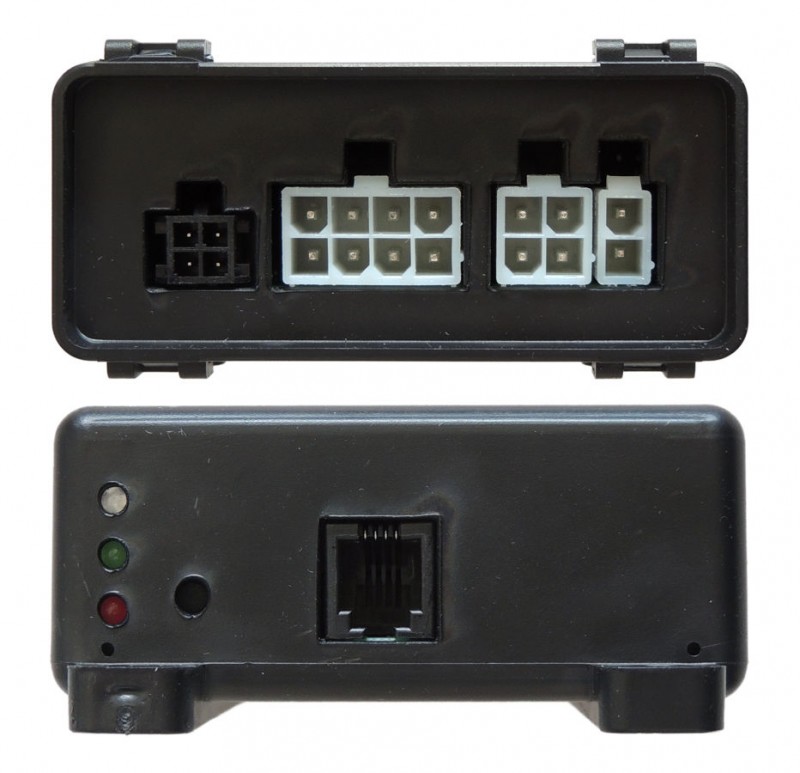

  • MP2S-CAN unit: info about LEDs & switches on cover
  • MP2S-CAN-G8 (v5prg36) KIA EV9

    Kia / EV9 / I (2023-2024)

    Kia / Sorento / IV [restyling] (2024-2024)

    Kia / Sportage / V [restyling] (2024-2024)

    Hyundai / Kona / (SX2) (2023-2024)

    Hyundai / Kona / Electric (SX2) (2023-2024)

    Hyundai / Kona / Hybrid (SX2) (2023-2024)

    Hyundai / Tucson / IV [restyling] (2024-2024)

  • MP2S-CAN-G8 (v5prg59) Skoda Superb IV [B9]

    Skoda / Superb / IV (2024-)

  • MP2S-CAN-G8 (v5prg59) Skoda Kodiaq II

    Skoda / Kodiaq / II (2024-)

  • MP2S-CAN-G8 (v5prg16spec) Volvo V90 II FL

    Volvo / V90 / II [restyling] (2020-2024)

    Volvo / XC90 / II [restyling] (2019-2024)

    Volvo / V60 / II (2018-2023)

    Volvo / V60 / II [restyling] (2023-2024)

    Volvo / S60 / III (2018-2023)

    Volvo / S60 / III [restyling] (2023-2024)

    Volvo / XC60 / II (2017-2021)

    Volvo / XC60 / II [restyling] (2022-2024)

  • MP2S-CAN-G8 (v5prg39spec) Mercedes VITO [W447-FL]

    Mercedes-Benz / Vito / W447 [restyling] (2019-2024)

  • MP2S-CAN-G8 (v5prg34) KIA/Hyundai (group1)

    Kia / Sportage / V [NQ5] (2021-2024)

    Kia / Sorento / IV [MQ4] (2020-2024)

    Hyundai / Tucson / IV [NX4] (2020-2024)

    Hyundai / Ioniq 5 / [NE] (2021-2024)

    Kia / Sportage / V PHEV (2022-2024)

    Kia / EV6 / I (2021-2024)

    Hyundai / Tucson / PHEV (2021-2024)

  • MP2S-CAN-G8 (v5prg76spec) BMW 318i [F30] 2017

    BMW / 3 Series / [F30/F31] [restyling] (2014-2018)

  • MP2S-CAN-G8 (v5prg93spec) OPEL Insignia B Tourer 2017-2020

    Opel / Insignia / B (II) (2017-2020)

  • MP2S-CAN-G8 (v5prg41) Jeep Wrangler Rubicon

    Jeep / Wrangler / Rubicon (2018-2024)

    • MP2S-CAN-G8 (v5prog17) Toyota Yaris IV

      Toyota / Yaris / IV (HEV) (2019-2024)

      Toyota / Yaris / Cross IV (HEV) (2020-2024)

    • MP2S-CAN-G8 (v5prg21) FiatDoblo2

      Fiat / Doblo / II (2010-2015)

      Fiat / Doblo / II [restyling] (2015-2022)

      Opel / Combo / D (2012-2018)

    • MP2S-CAN-G8 (v5prg68) Daily4

      Iveco / Daily / IV (2021-2024)

    • MP2S-CAN-G8 (v5prg39) Sprinter3

      Mercedes / Sprinter / III (2018-2024)

    • MP2S-CAN-G8 (v5prg18) Ducato8

      Fiat / Ducato / IV (2021-2024) (nazywane Ducato 8)

    • MP2S-CAN-G8 (v5prg21) Ducato7

      Fiat / Ducato / III [restyling] (2014-2021) (known as Ducato 7)

    • MP2S-CAN-G8 (v5prg37) Audi A4 [B8] (2007-2015)

      Audi / A4 / B8/8K [restyling] (2011-2015)

      Audi / A4 / B8/8K (2007-2011)

    • MP2S-CAN-G8 (v5prg37) Audi Q5 [8R] (2008-2016)

      Audi / Q5 / 8R (2008-2012)

      Audi / Q5 / 8R [restyling] (2012-2016)

    • MP2S-CAN-G8 (v5prg38) Mercedes C-Class [W205]

      Mercedes-Benz / C-Class / W205/S205/C205/A205 (2014-2018)

      Mercedes-Benz / C-Class / W205/S205/C205/A205 [restyling] (2018-2021)

    • MP2S-CAN-G8 (v5prg26) BMW 5 [E60/61]

      BMW / 5 Series / [E60/E61] (2003-2007)

      BMW / 5 Series / [E60/E61] [restyling] (2007-2010)

    • MP2S-CAN-G8 (v5prg23) BMW [F20/21/30/31/34]

      BMW / 1 Series / [F20/F21] (2011-2014)

      BMW / 3 Series / [F30/F31] (2012-2014)

      BMW / 3 Series / GT [F34] (2013-2014)

    • MP2S-CAN-G8 (v5prg26) BMW (group1)

      BMW / 1 Series / [E81/E87] [restyling] (2007-2011)

      BMW / 1 Series / [E81/E87] (2004-2007)

      BMW / 3 Series / Touring [E91] (2005-2012)

      BMW / 3 Series / [E90] (2005-2012)

      BMW / X1 / E84 (2009-2012)

      BMW / X1 / E84 [restyling] (2012-2015)

      BMW / 1 Series / Coupe [E82] (2007-2013)

      BMW / 1 Series / Cabrio [E88] (2008-2013)

      BMW / 3 Series / Coupe [E92] (2006-2013)

      BMW / 3 Series / Cabrio [E93] (2007-2014)

    • MP2S-CAN-G8 (v5prg23) MERCEDES [group1]

      Mercedes-Benz / A-Class / W176 (2012-2018)

      Mercedes-Benz / B-Class / W246 (2011-2015)

      Mercedes-Benz / B-Class / W246 [restyling] (2014-2019)

      Mercedes-Benz / CLA-Class / C117/X117 (2013-2016)

      Mercedes-Benz / GLA-Class / X156 (2014-2017)

      Mercedes-Benz / CLA-Class / C117/X117 [restyling] (2017-2019)

      Mercedes-Benz / GLA-Class / X156 [restyling] (2017-2020)

    • MP2S-CAN-G8 (v5prg93) OPEL [group1]

      Opel / Meriva / II [restyling] (2014-2017)

      Chevrolet / Cruze / (2009-2014)

      Chevrolet / Trax / (2012-2014)

      Chevrolet / Orlando / (2011-2014)

      Chevrolet / Malibu / IV (2012-2016)

      Chevrolet / Aveo / III (2011-2014)

      Saab / 9-5 / II (2010-2012)

      Opel / Adam / (2012-2019)

      Opel / Zafira / C (2012-2016)

      Opel / Zafira / C [restyling] (2016-2019)

      Opel / Mokka / X (2016-2020)

      Opel / Astra / J (IV) (2009-2012)

      Opel / Insignia / B (II) (2017-2020)

      Opel / Astra / J (IV) GTC (2012-2018)

      Opel / Astra / J (IV) Sedan (4d) (2012-2020)

      Opel / Corsa / E (2014-2019)

      Opel / Cascada / (2013-2019)

      Opel / Mokka / (2012-2016)

      Opel / Meriva / II (2010-2013)

      Opel / Insignia / A [restyling] (2013-2017)

      Opel / Insignia / A (2008-2013)

      Opel / Astra / J (IV) [restyling] (2012-2015)

    • MP2S-CAN-G8 (v5prg11) VW-Group (group1)

      Volkswagen / Touran / I [1T] [2nd restyling] (2010-2015)

      Volkswagen / Eos / [restyling] (2010-2015)

      Volkswagen / Jetta / V (2005-2010)

      Volkswagen / Jetta / VI (2011-2014)

      Volkswagen / Passat / B6 (2005-2010)

      Volkswagen / Passat / B7 (2010-2014)

      Volkswagen / Passat CC / (2008-2011)

      Volkswagen / Tiguan / I [5N] (2007-2011)

      Volkswagen / Tiguan / I [5N] [restyling] (2011-2016)

      Volkswagen / Eos / (2006-2010)

      Volkswagen / Sharan / II [7N] (2010-2015)

      Volkswagen / Touran / I [1T] (2003-2007)

      Volkswagen / Touran / I [1T] [restyling] (2006-2010)

      Volkswagen / Golf Plus / (2005-2014)

      Volkswagen / Caddy / III (2004-2010)

      Volkswagen / Caddy / III [restyling] (2010-2015)

      Volkswagen / Caddy / IV (2015-2020)

      Volkswagen / CC / (2012-2016)

      SEAT / Toledo / III (2004-2009)

      Audi / A3 / II Sportback (2004-2013)

      Audi / A3 / II [8P] [restyling] (2008-2012)

      Audi / Q3 / I (2011-2014)

      Audi / Q3 / I [restyling] (2014-2018)

      SEAT / Alhambra / II (2010-2015)

      SEAT / Altea / (2004-2009) [also XL]

      SEAT / Altea / [restyling] (2009-2015) [also XL]

      SEAT / Leon / II [restyling] (2005-2012)

      Audi / A3 / II [8P] (2003-2008)

      Skoda / Octavia / II (2004-2008) [also Scout]

      Skoda / Octavia / II [restyling] (2008-2013) [also Scout]

      Skoda / Superb / II (2008-2013)

      Skoda / Superb / II [restyling] (2013-2015)

      Volkswagen / Golf / V [1K] (2003-2008)

      Skoda / Yeti / (2009-2014)

      Skoda / Yeti / [restyling] (2013-17)

      Volkswagen / Golf / VI [5K] (2008-2013)

    • MP2S-CAN-G8 (v5prg11) VW-Group [group2]

      Skoda / Fabia / II [5J] [restyling] (2010-2014)

      Skoda / Rapid / (2012-2015)

      Skoda / Roomster / [restyling] (2010-2015)

      SEAT / Ibiza / IV (2008-2012)

      SEAT / Ibiza / IV [restyling] (2012-2015)

      SEAT / Toledo / IV (2012-2015)

      Volkswagen / Polo / V (2009-2014)

    • MP2S-CAN-G8 (v5prg59) VW-Group (group1)

      Skoda / Octavia / IV (2020-2024)

      Audi / Q3 / II (2018-2024)

      SEAT / Leon / IV (2020-2024)

      SEAT / Arona / (2017-2021)

      SEAT / Arona / [restyling] (2021-2024)

      SEAT / Ibiza / V (2017-2021)

      SEAT / Ibiza / V [restyling] (2021-2024)

      SEAT / Terraco / (2018-2024)

      Skoda / Fabia / IV (2021-2024)

      Skoda / Kamiq / (2019-2024)

      Skoda / Karoq / [restyling] (2022-2024)

      Skoda / Kodiaq / I [restyling] (2021-2023)

      Audi / A3 / IV [8Y] (2020-2024)

      Skoda / Superb / III [restyling] (2019-2024) [also called IV]

      Skoda / Scala / (2019-2024)

      Volkswagen / Arteon / [restyling] (2020-2024)

      Volkswagen / Golf / VIII (2019-2024)

      Volkswagen / Polo / VI [restyling] (2021-2024)

      Volkswagen / Taigo / (2021-2024)

      Volkswagen / Touran / II [5T] (2015-2024) [also called III]

      Volkswagen / T-Cross / (2019-2024)

      Volkswagen / T-Roc / (2017-2021)

      Volkswagen / T-Roc / [restyling] (2022-2024)

      Skoda / Superb / III (2015-2019)

      Audi / A3 / III [8V] [restyling] (2016-2020)

      Audi / Q2 / (2016-2020)

      Audi / Q5 / II (2017-2020)

      Audi / Q7 / II (2015-2019)

      Audi / Q8 / (2018-2024)

      SEAT / Leon / III (2012-2020)

      Skoda / Karoq / (2017-2021)

      Skoda / Kodiaq / I (2017-2021)

      Skoda / Octavia / III (2013-2016)

      Skoda / Octavia / III [restyling] (2016-2020)

      Audi / A3 / III [8V] (2012-2016)

      Volkswagen / Arteon / (2017-2020)

      Volkswagen / Golf / VII (2013-2016)

      Volkswagen / Golf / VII [restyling] (2017-2020)

      Volkswagen / Passat / B8 (2014-2019)

      Volkswagen / Polo / VI (2017-2021)

      Volkswagen / Tiguan / II (2016-2020)

      Audi / Q2 / [restyling] (2020-2022)

      Audi / Q5 / II [restyling] (2020-2024)

      Audi / Q7 / II [restyling] (2019-2024)

      Audi / A1 / II (2018-2024) Sportback

    • SEAT LEON III 2012 dedicated installation guide MP2S-CAN-G8

      SEAT / Leon / III (2012-2020)
