standard system - for typical passenger cars suitable to the 7-pin plug of the trailer suitable to the 13-pin plug of the trailer (used 8-pins) trailer reverse lights control LED/bulb lamps support, PWM control recognition of PWM steering of car lamps (analogue method) trailer LED/bulb lamps support directly steering of fog-light of trailer
List price
18.00 EUR (excl. VAT)

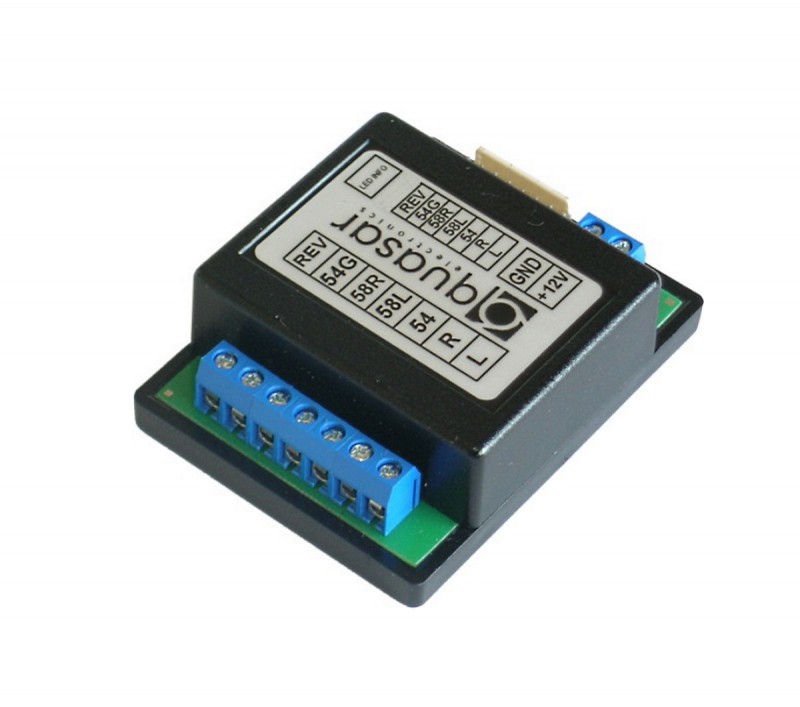

WH0 module is simplest module of trailer steering of the light and is most economically.

Module was designed to connect to the 8-wire installation of the trailer (this include REV light) and should be used with 13-pins socket but can be used with 7-pins socket (in this case without REV light).
WH0 module works correctly with lamps based on filament bulb or on LED in car. Additionaly, it works with PWM steering of lamps in car (when by one wire are controlled two lights - eg. "brake lights" and "tail light").

This is simplest module with minimal accessories for lowest price.


NOTE: package don't include a socket (for the trailer) nor output wires (to the socket, to the power).

Product requires to be installed by specialized workshop - read here.

  • Product's EAN code: 5907662621121

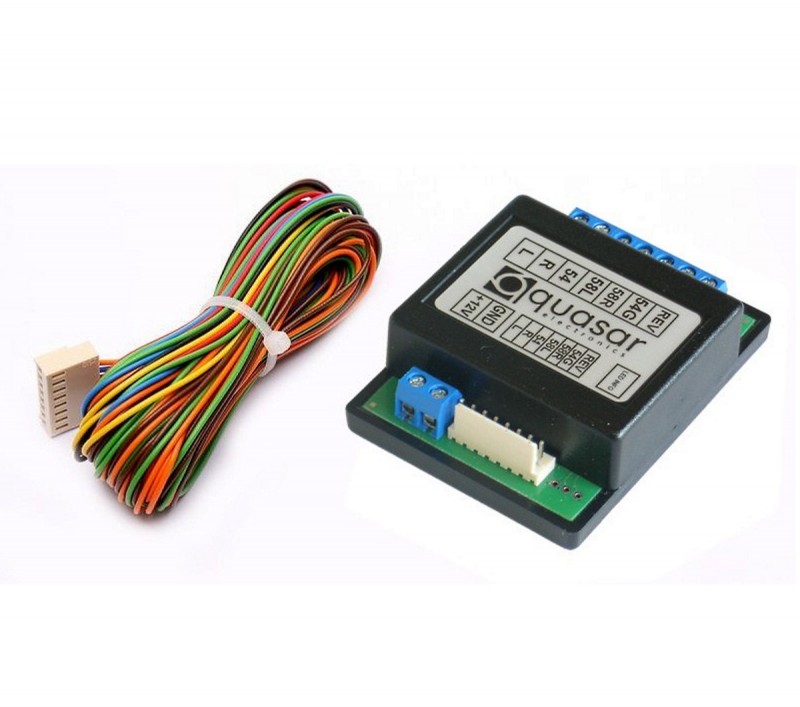

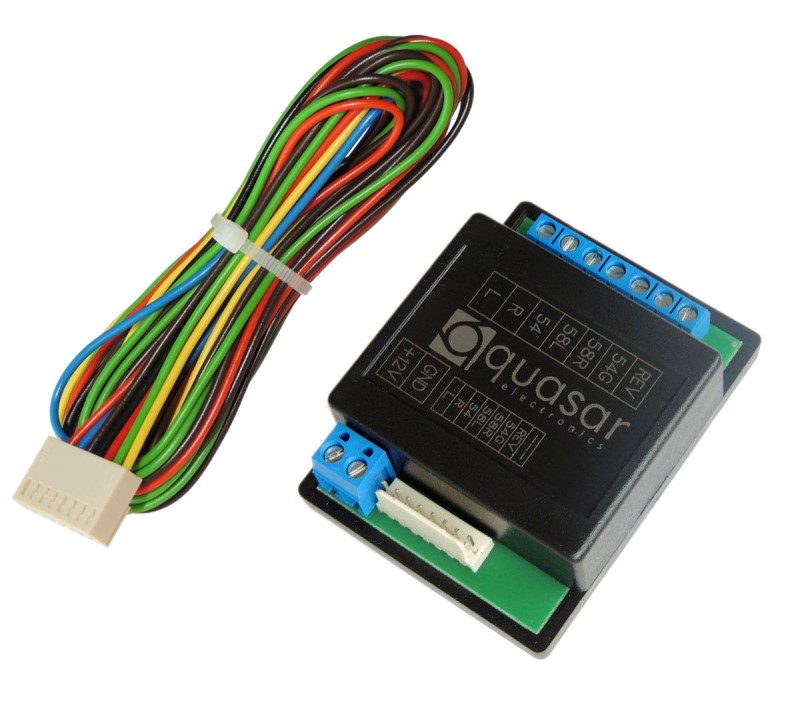

Kit contents
  • Main control unit 1 pc
  • Signal cables harness (7 inputs) 1 pc
  • Connections diagram 1 pc
Module main features
Current load inputs
≤2 mA
LED lights and single filament bulbs support (car)
Working with cars which use pulse width modulation (PWM) for powering lamps
LED lights and filament bulbs support(trailer)
Ability to control of park sensors module in car
Trailer reverse light control
Car rear fog-lights control modes
Trailer fog lights control modes
Trailer fog light sequential(independent) control
Features of electric cable harness
Length of input signals cable harness
L=1,0 R=2,5 m
Technical data
Power supply voltage
10-18 V
Position lights output power, max
(each of sides) 3 x 5 W
Stop lights output power, max
3 x 21 W
Turn signal output power, max
(each of sides) 21+10 W
Fog-light output power, max
21 W
Reverse lights output power, max
21 W
Kit equipment
Complete bundle of towbar with installation accessories
(ONLY main unit and short IN harness)
