Features
standard system - for typical passenger cars CAN-BUS data readout suitable to the 13-pin plug of the trailer trailer reverse lights control LED/bulb lamps support, PWM control trailer LED/bulb lamps support independent rear fog lights control trailer rear fog lights turning-on audio information socket for tri-colour LED indicator acoustic information about trailer connecion and disconnection trailer's turn signal lights damage datection and audio notification output for enabling of switching off PDC signalization in car OPTION: additionally variants of stitching off PDC signalling using separatelly PDC-OFF modules supply voltage (+12V) is permanently brought out in the socket contains separately circuit for trailer battery charging managed by relay (included) trailer socket is factory mounted on cable harness displaying malfunction of trailers turn lights on car dashboard display panel (for selected cars) automatically deactivation rear PDC sensors when trailer is connected (for selected cars) automatically blocking of switching-on rear fog-light when trailer is connected (for selected cars) blocking of car trunk opening by driver using remote switch if trailer is connected (for selected cars)
List price
75.00 EUR (excl. VAT)
Find distributor Add to compare list Add to selected
MP2S-CAN-G13

Main module (MP2S-CAN) - in contrast to others - reads inputs data from car CAN-Bus - not from wires to lamps. Thanks to this count of needed connections under installation time is much less than in case of "typical" modules. More over - main cable harness is already connected with socket - this also makes an installation process easier and faster.



Kit MP2S-CAN-G13 is operate with "full" G13 socket including "permament plus" and loading circuit for caravan battery. Kit contains relay for switching the circuit of loading battery (only when cars engine operates - more than 10 secs).



MP2S-CAN module supports many of car models present on the European market - but must be configured for concrete type/model of car. Factory is prepared to with particular group of cars. Module is equipped with an output for deactivate of parking sensors module (PDC) in car - but for some cars this can be realised "directly".
Note: continuous product improvement and availability of electronic components leads MP2S-CAN unit  can be oferred in a few versions with small changes. However, all module functions depends on a current firmware generation and still the same for each of them. Firmware update can be made by own using Bootloader with payment free software.



For some models of cars there are offered dedicated kits with cable harness where is used available in car the special, factory connector. More information is here.



In special cases - when this is required - it is possible to make contact-less data reading from CAN-Bus (without "hard" contact - without "phisically integration" with an installation of car) using optionally module MCB-CLICK-CAN.



Kit can be is equipped with (optional) LED-RGY-500 - tri-colour LED indicator which inform about:

  • connecting of the trailer;
  • damaging the directions lights on the trailer;
  • switching-on fog light on the trailer;
  • loading of trailer battery.



A compatibility list (list of cars and models supported by MP2S-CAN) is available for download below under the FILES tab.

Here are short movies about operate MP2S-CAN.

Product requires to be installed by specialized workshop - read here.

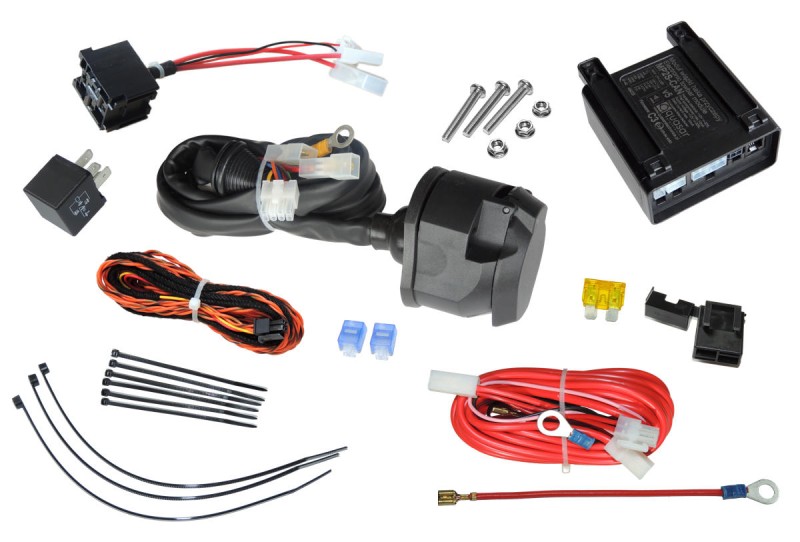

Kit contents
  • Main control unit 1 pc
  • Main cable harness with 13-pin socket 1 pc
  • Signal cables harness (to the CAN-Bus) 1 pc
  • Power cable harness 1 pc
  • Relay and socket with connections 1 set
  • Mounting set 1 set
  • Screw set 1 set
  • Connections diagram 1 pc
Module main features
CAN-Bus vehicle data readout
LED lights and single filament bulbs support (car)
LED lights and filament bulbs support(trailer)
Trailer/camper connection detection (bulb lamps)
Trailer/camper connection detection (LED lamps)
Ability to control of park sensors module in car
Trailer turn signal lamps failure detection
Trailer reverse light control
Permanent power supply to trailer socket
Trailer battery charging circuit
Intelligent charging of trailer battery
Alerts & Notifications
Trailer connection notification
Trailer turn signal failure
Trailer/caravan fog lights switching on/off notification
Trailer battery charging notification
LED-RGY-500 (option)
Car rear fog-lights control modes
Trailer fog lights control modes
sequence or direct
Car rear fog lights cut-off
Features of electric cable harness
Mounted socket on the cable harness
Length of power harness
5,0 m
Length of cable harness to the socket
1,7 m
Length of input signals cable harness
(to CAN-Bus) 5,0 m
Technical data
Power supply voltage
10-18 V
Position lights output power, max
(each of sides) 3 x 5 W
Stop lights output power, max
3 x 21 W
Turn signal output power, max
(each of sides) 21+10 W
Fog-light output power, max
21 W
Reverse lights output power, max
21 W
Trailer battery charging current, max
10 A
Parking sensors output load capacity, max
0,5 A
Kit equipment
Complete bundle of towbar with installation accessories
Filter by car

Select car type, make and model to find available manuals.

clear form

Manuals
  • MP2S-CAN unit: info about LEDs & switches on cover
  • MP2S-CAN-G13 (v5prg67) Omoda 9

    Omoda / 9 PHEV / (2025-2026)

  • MP2S-CAN-G13 (v5prg59) VW Passat B9

    Volkswagen / Passat / B9 (2024-2026)

    Skoda / Superb / IV (2024-2026)

  • MP2S-CAN-G13 (v5prg59) Grupa-VW [p59group3]

    Audi / A3 / IV [8Y] (2023-2026)

    Volkswagen / Caddy / V (2023-2026)

    Volkswagen / Golf / 8 gen [restyling] (2024-2026)

    Volkswagen / Tiguan / III (2024-2026)

    Volkswagen / Passat / B9 (2024-2026)

    Volkswagen / Tayron / (2024-2026)

    Skoda / Kodiaq / II (2024-)

    Skoda / Octavia / IV [restyling] (2024-2026)

    Skoda / Superb / IV (2024-2026)

    SEAT / Leon / IV (2023-2026)

    Cupra / Formentor / (2023-2026)

    Cupra / Terramar / (2024-2026)

    Ford / Tourneo Connect / III (2023-2026)

    Ford / Transit Connect / III (2023-2026)

  • MP2S-CAN-G13 (v5prg59) Grupa-VW [p59group2]

    Skoda / Superb / III [restyling] (2019-2024)

    Skoda / Karoq / (2017-2021)

    Skoda / Karoq / [restyling] (2022-2026)

    Skoda / Kodiaq / I (2017-2021)

    Skoda / Kodiaq / I [restyling] (2021-2023)

    Skoda / Octavia / III (2013-2016)

    Skoda / Octavia / III [restyling] (2016-2020)

    Skoda / Octavia / IV (2020-2024)

    Skoda / Superb / III (2015-2019)

    Volkswagen / Touran / II [5T] (2015-2026)

    Volkswagen / Multivan / T7 (2021-2026)

    Ford / Transit Connect / III (2022-2023)

    Ford / Tourneo Connect / III (2022-2023)

    SEAT / Ateca / I (2016-2026)

    SEAT / Leon / III (2012-2020)

    SEAT / Leon / IV (2020-2023)

    SEAT / Terraco / (2018-2026)

    Cupra / Formentor / (2020-2023)

    Volkswagen / Caddy / V (2020-2023)

    Audi / A3 / III [8V] (2012-2016)

    Audi / A3 / III [8V] [restyling] (2016-2020)

    Audi / A3 / IV [8Y] (2020-2023)

    Audi / Q2 / (2016-2020)

    Audi / Q2 / [restyling] (2020-2022)

    Audi / Q3 / II (2018-2025)

    Volkswagen / Arteon / (2017-2020)

    Volkswagen / Arteon / [restyling] (2020-2026)

    Audi / A1 / II (2018-2026)

    Volkswagen / Golf / 7 gen (2013-2016)

    Volkswagen / Golf / 7 gen [restyling] (2017-2020)

    Volkswagen / Golf / 8 gen (2019-2024)

    Volkswagen / Passat / B8 (2014-2024)

    Volkswagen / T-Roc / (2017-2021)

    Volkswagen / T-Roc / [restyling] (2022-2026)

    Volkswagen / Tiguan / II (2016-2020)

    Volkswagen / Tiguan / II [restyling] (2020-2024)

  • MP2S-CAN-G13 (v5prg59) Grupa-VW [p59group1]

    Skoda / Fabia / III [NJ] (2014-2018)

    Skoda / Fabia / III [NJ] [restyling] (2018-2022)

    Skoda / Kamiq / (2019-2026)

    Skoda / Rapid / (2015-2019)

    Skoda / Scala / (2019-2026)

    Volkswagen / Polo / VI (2017-2021)

    Volkswagen / Polo / VI [restyling] (2021-2026)

    Volkswagen / T-Cross / (2019-2026)

    Volkswagen / Taigo / (2021-2026)

    SEAT / Arona / (2017-2021)

    SEAT / Arona / [restyling] (2021-2026)

    SEAT / Ibiza / IV [2nd restyling] (2015-2017)

    SEAT / Ibiza / V (2017-2021)

    SEAT / Ibiza / V [restyling] (2021-2026)

    SEAT / Toledo / IV (2015-2019)

  • MP2S-CAN-G13 (v5prg61) BAIC5

    BAIC / Beijing / 5 (2023-2026)

  • MP2S-CAN-G13 (v5prg62) BYDSeal

    BYD / Seal / (2023-2026)

    BYD / Seal U / (2024-2026)

    BYD / Sealion / 7 (2024-2026)

  • MP2S-CAN-G13 (v5prg63) Duster2

    Dacia / Duster / II (2018-2024)

  • MP2S-CAN-G13 (v5prg64) BYDAtto3

    BYD / Atto / 3 (2023-2026)

Technical Information
Wiring diagrams (general)
Configuration software & Drivers
Firmware
